Heavy-Duty Corrugated Suction & Delivery Hose for Vacuum Trucks and Hydro Excavation

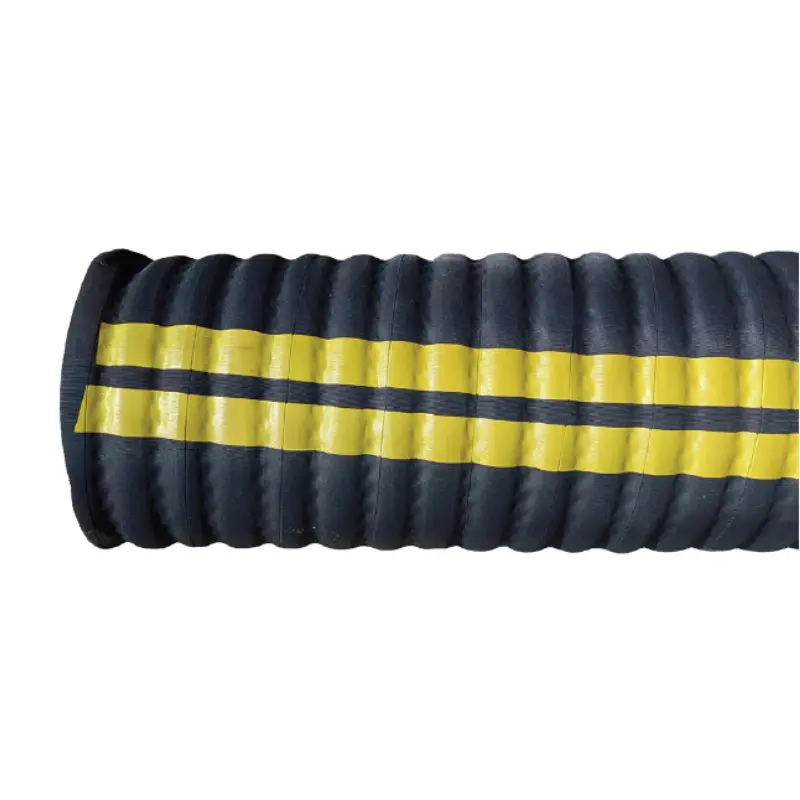

The CAP 6″ 19m Corrugated Cassette Hose is engineered for high-performance suction and delivery applications across the vacuum excavation, material handling, and industrial maintenance sectors. Its corrugated construction adds extra flexibility over a smooth-bore equivalent, allowing the hose to feed, retract and store efficiently within compatible cassette systems while maintaining reliable suction performance.
With a 3mm super abrasion-resistant tube, superior flexibility, and a UV-resistant outer cover, this hose is built to withstand the toughest environments while maintaining consistent performance across demanding site conditions.
Each hose is hand-made in Australia, ensuring exceptional durability and quality you can rely on for vacuum truck cassette reels and hydro excavation operations.
Before ordering, confirm the internal diameter, outside diameter, required length and installation requirements for your cassette system.
Features
- 6″ (152mm) nominal internal diameter
- Corrugated construction for extra flexibility
- Extremely flexible suction/delivery hose
- Available in 19m lengths
- 3mm super abrasion-resistant tube
- UV-resistant outer cover
- Hand-made in Australia
- Full-vacuum capability
- 5 bar working pressure
- 4:1 safety factor
Applications
- Vacuum truck cassette reels
- Mining material handling
- Vacuum loading
- Hydro excavation / non-destructive digging
- Industrial maintenance operations
- Civil and environmental service operations

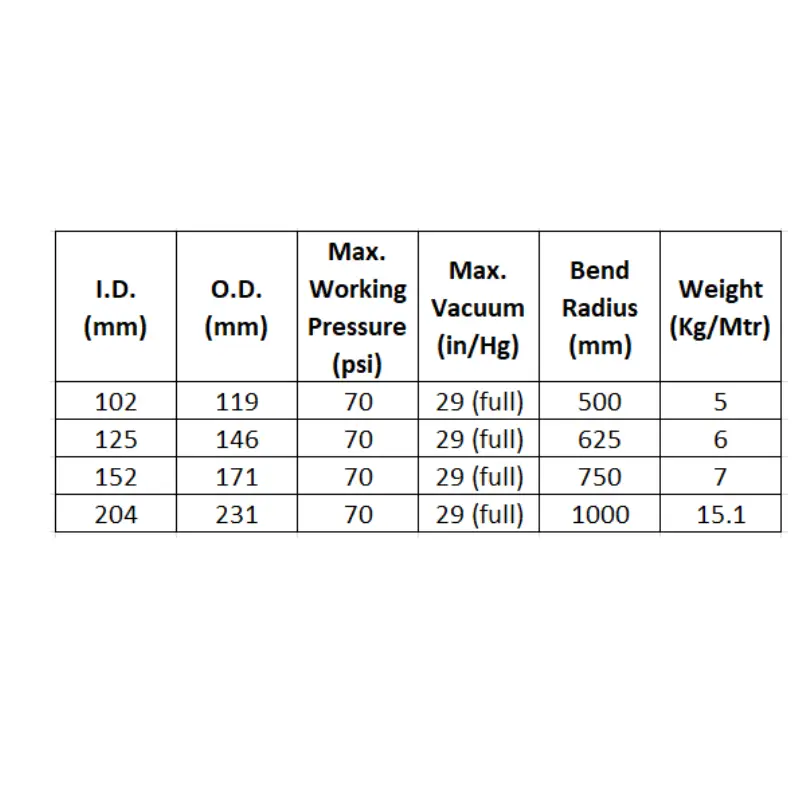

Technical Specifications
- Product type: Corrugated cassette hose
- Nominal size: 6″
- Internal diameter: 152mm
- Outside diameter: 171mm
- Length: 19m
- Tube thickness: 3mm
- Maximum vacuum: 684mmHg, approximately 0.9 bar
- Working pressure: 5 bar, approximately 72 PSI
- Safety factor: 4:1
- Country of manufacture: Australia (hand-made)
- Tube: Super abrasion-resistant rubber
- Cover: UV-resistant outer cover
