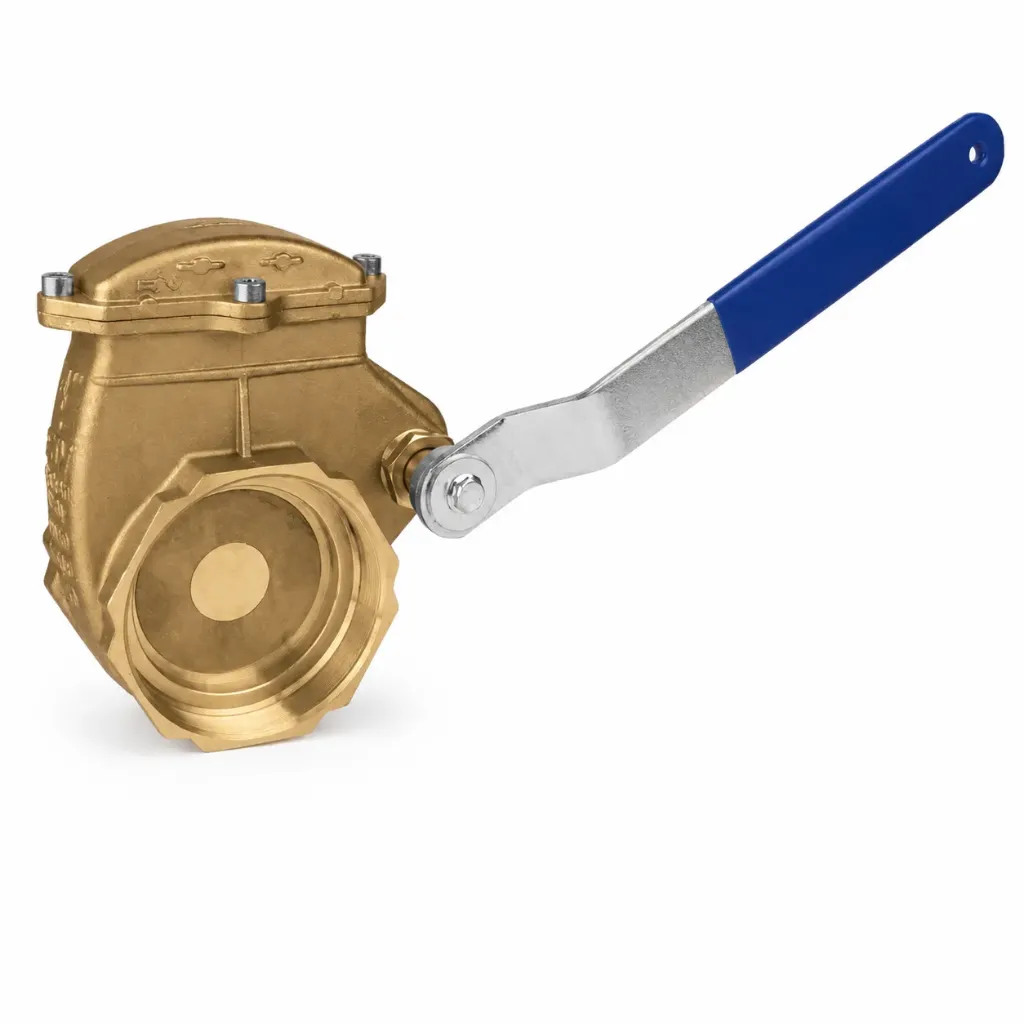

The 6″ Gate Valve Brass BSP is a quick-acting, lever-operated valve designed for flow isolation in compatible vacuum excavation, tank truck and industrial fluid-transfer systems.
The internal wedge consists of two horizontally pivoting discs designed to align with the tapered valve seat when closed. This design assists with achieving a secure shut-off across the large 6-inch flow path.
Its large internal capacity helps reduce the risk of clogging when handling compatible liquids or material-containing flows. The brass body provides robust industrial construction, while anti-corrosion stainless steel screws support use in demanding operating environments.
The valve is fitted with a BSP threaded connection for integration into compatible pipework and equipment.
Contact EPS to confirm the thread form, connection gender, seal material and suitability for your operating medium, pressure and temperature.
Key Features
- 6″ / 150 mm nominal size: Provides a large flow path for compatible high-volume systems.
- Quick-acting lever: Enables efficient manual opening and closing.
- Dual pivoting-disc wedge: Helps the closing assembly align with the tapered valve seat.
- Large internal capacity: Helps minimise flow restrictions and material build-up.
- BSP threaded connection: Designed for compatible Australian industrial pipework.
- Brass body: Provides robust construction for industrial fluid-handling equipment.
- Stainless steel screws: Offer resistance to corrosion.
Technical Specifications
- Valve type: Quick-acting lever gate valve
- Nominal valve size: 6″ / 150 mm
- Connection: BSP threaded
- Body material: Brass
- Operating mechanism: Manual lever
- Internal wedge: Two horizontally pivoting discs
- Valve seat: Tapered
- Screw material: Anti-corrosion stainless steel
Applications
- Vacuum excavation and NDD equipment
- Vacuum truck rear-door or entry-point assemblies
- Tank truck pipework
- Liquid-waste and slurry-transfer equipment
- Large-bore industrial fluid-transfer systems
- Compatible tank drain, fill and discharge lines
