Bagger-Max Sled 3D

High-Efficiency Bottom Cleaner Nozzle

The Bagger-Max Sled 3D is a high-performance floor and bottom cleaning nozzle engineered for powerful excavation and material transport in Hydro-Excavation, NDD, and industrial cleaning applications. Constructed from hardened stainless steel for maximum durability, this nozzle features an adjustable nozzle block that can be set between 0° and 30° to suit different operating conditions. Its advanced 3D fluid mechanics generate a forceful jet pattern that delivers exceptional excavation, traction, and transport of material — even under water. Equipped with roll-over bars, the nozzle automatically returns to its correct operating position, ensuring consistent performance and reliability. One-piece ceramic inserts and a high-pressure swivel are included as standard, making the Bagger-Max Sled 3D a complete solution for demanding environments across Melbourne and Australia.

Key Features

• Hardened stainless steel construction for strength and durability

• Adjustable nozzle block with 0°–30° positioning for versatile applications

• Advanced 3D fluid mechanics deliver powerful jet pattern and superior excavation

• Roll-over bars ensure the nozzle resets to the correct position automatically

• One-piece ceramic inserts and high-pressure swivel included as standard

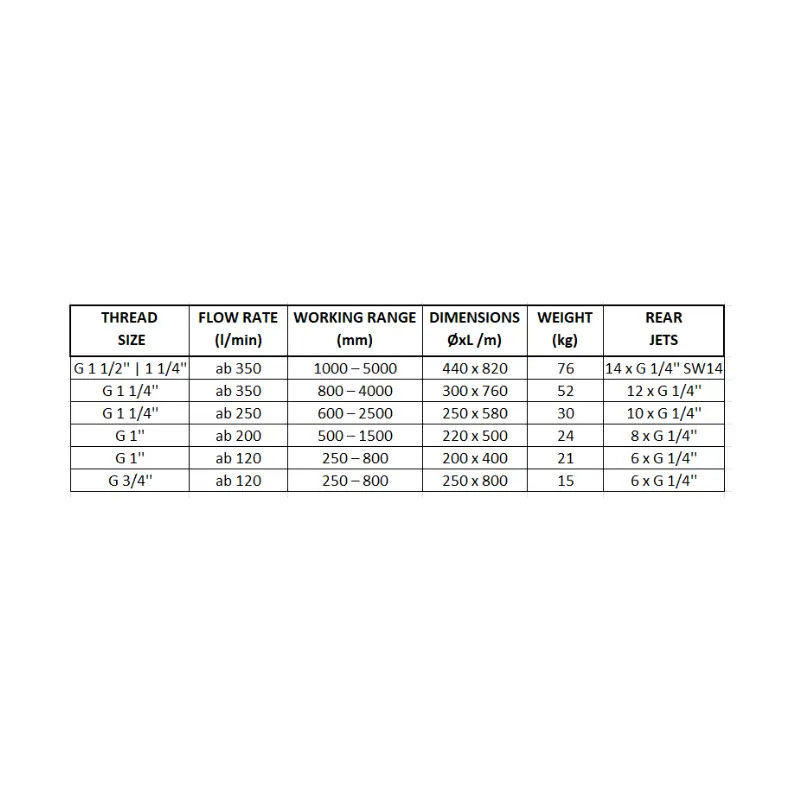

Technical Specifications

• Product Type: Bottom Cleaner Nozzle

• Material: Hardened stainless steel

• Nozzle Block Adjustment: 0° – 30°

• Fluid Mechanics: Built-in 3D power manifold

• Features: Roll-over bars, one-piece ceramic inserts, high-pressure swivel

• Applications: Hydro-Excavation, NDD, underwater excavation, industrial cleaning

Maximise your excavation power with the EPS Bagger-Max Sled 3D — a durable, high-efficiency nozzle built for the toughest jobs. Order today for superior cleaning and material transport performance.
