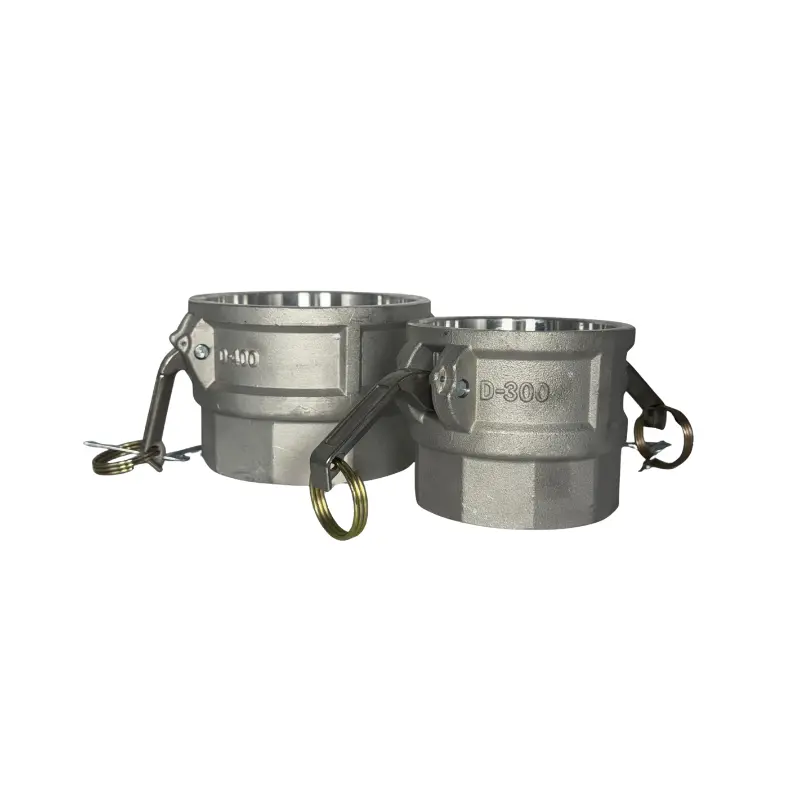

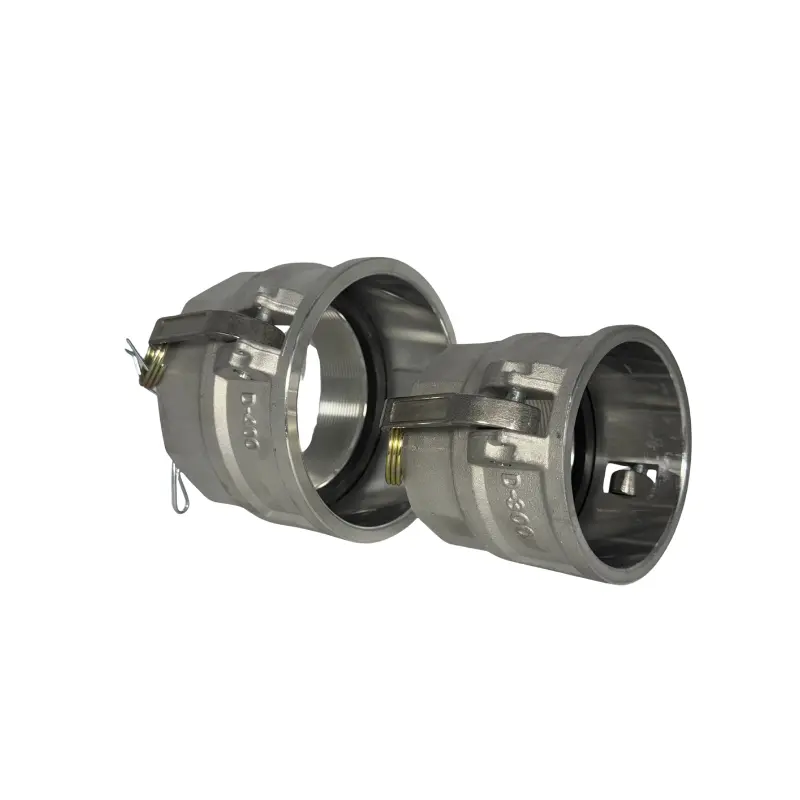

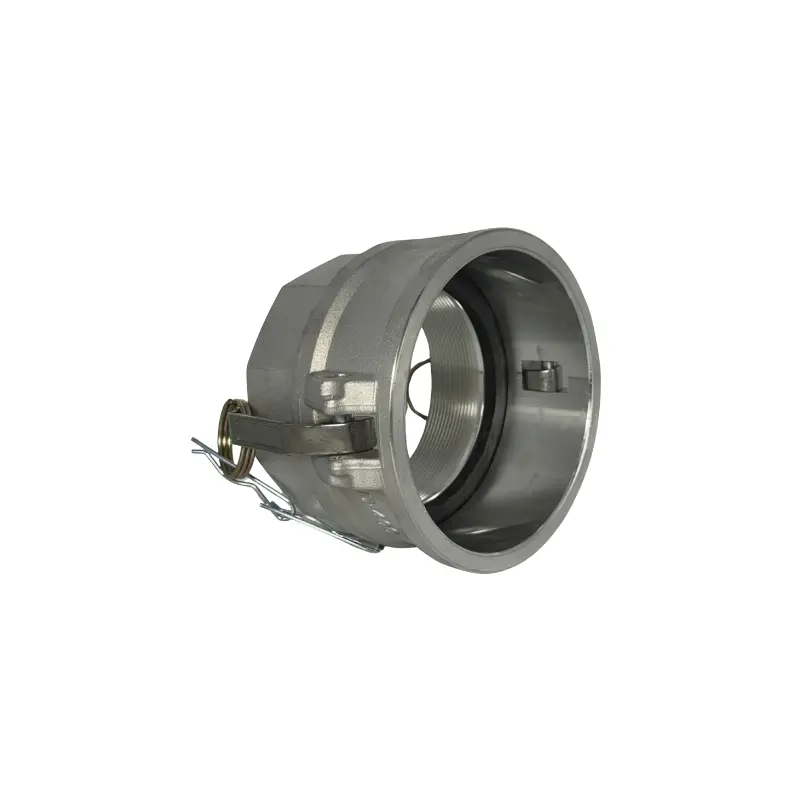

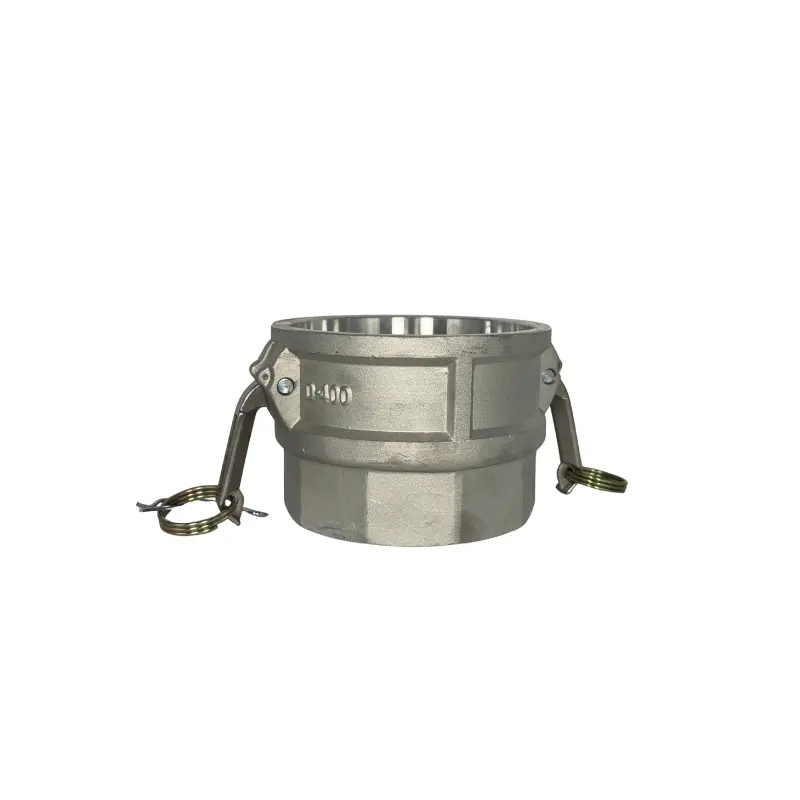

Camlock Type D Aluminium BSP
The Camlock Type D Aluminium BSP is a female coupler with a female BSP thread, designed for quick and secure hose-to-threaded connection applications. Manufactured from high-grade aluminium, this coupling is lightweight yet durable, offering excellent resistance to corrosion in non-aggressive media. The Type D is ideal for industries such as agriculture, irrigation, construction, petroleum handling, and general fluid transfer systems where fast connection and disconnection are required without the need for tools.
Key Features
Constructed from high-quality aluminium for strength and corrosion resistance.
Female coupler x Female BSP thread configuration.
Designed for quick-connect and disconnect applications.
Compatible with all other Camlock couplers of the same size (A, E, F, etc.).
Lightweight and easy to handle compared to stainless steel or brass.
Suitable for use with water, fuels, chemicals, and dry bulk materials.
Technical Specifications
Material: Aluminium Alloy
Type: Camlock Type D
Connection: Female Coupler x Female BSP Thread
Sizes: Available in 2” to 8”
Temperature Range: -20°C to +120°C (subject to gasket material)
